Deep Draw Tool

Deep Draw Tool Manufacturer in Noida – Bhavya Precision Tools & Components

Bhavya Precision Tools & Components manufactures high-quality Deep Draw Tools and Deep Draw Dies for precision sheet metal forming applications. Designed for reliable deep drawing operations, this single-draw tool is suitable for producing round cup-shaped components with consistent dimensions, smooth forming and repeatable production performance.

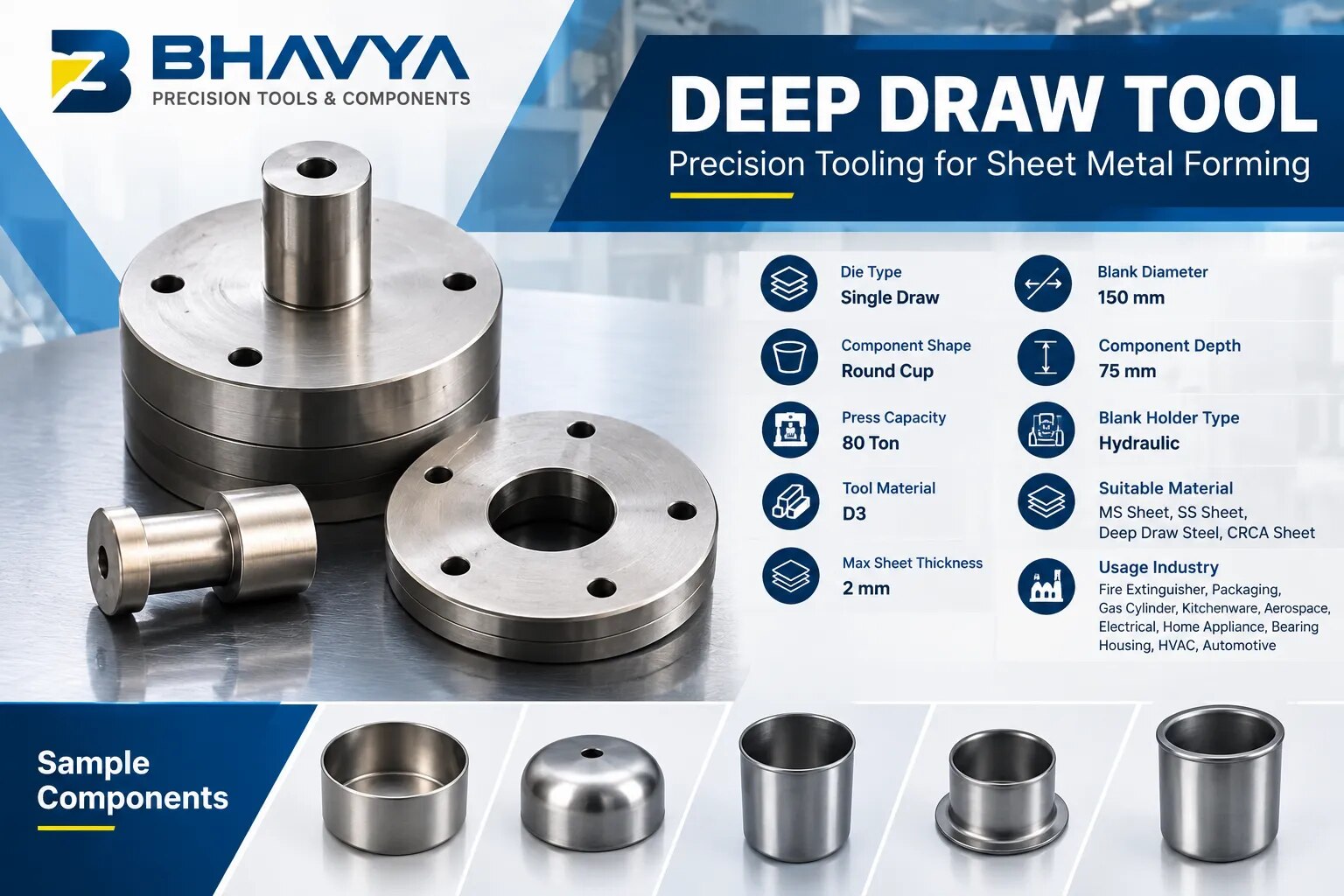

This Deep Draw Tool is designed for an 80-ton press capacity and is manufactured using D3 tool material for durability and wear resistance. It supports sheet thickness up to 2 mm, with a blank diameter of 150 mm and component depth of 75 mm. The hydraulic blank holder provides controlled material flow during the deep drawing process.

The tool is suitable for MS Sheet, SS Sheet, Deep Draw Steel and CRCA Sheet, making it useful for manufacturers producing components for fire extinguishers, packaging, gas cylinders, kitchenware, aerospace, electrical equipment, home appliances, bearing housings, HVAC and automotive applications.

Bhavya Precision Tools & Components is based in Greater Noida, Uttar Pradesh, and supplies precision deep draw dies, press tools and sheet metal tooling across Noida, Greater Noida, Delhi NCR and India. Our tooling solutions are developed according to component requirements, material specifications and production needs.

Key specifications: Die Type: Single Draw | Component Shape: Round Cup | Press Capacity: 80 Ton | Tool Material: D3 | Maximum Sheet Thickness: 2 mm | Component Depth: 75 mm | Blank Diameter: 150 mm | Blank Holder: Hydraulic.

Frequently Asked Question: What is a Deep Draw Tool?

A Deep Draw Tool is a specialized press tool used to transform flat sheet metal blanks into deeper three-dimensional components through controlled forming operations.

Where can I get a Deep Draw Die in Noida?

Bhavya Precision Tools & Components supplies customized Deep Draw Tools from Greater Noida for customers across Noida, Delhi NCR and India.
